LEAK TESTER

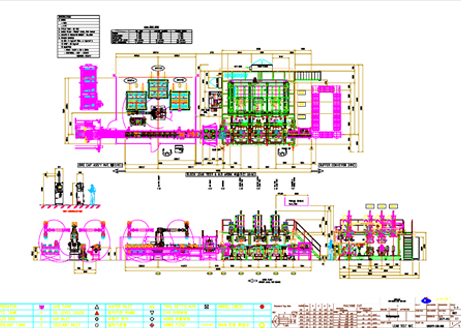

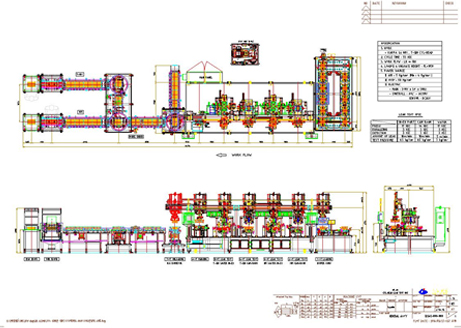

CYL BLOCK LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST OIL LINE LEAK TEST
3 - ST W/J LEAK TEST
4 - ST CRANK ROOM LEAK TEST
5 - ST NG CONVEYOR
6 - ST AIR BLOW
7- ST UNLOAD’G
SPECIFICATION
Type Transfer Type
Work Transfer Pallet Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 39 sec/ea
LEAK TEST SPEC OIL LINE WATER JACKET CRANK ROOM
PRESS 7 SEC 7 SEC 7 SEC
EQUALIZING 5 SEC 5 SEC 5 SEC
DETECTION 3 SEC 5 SEC 4 SEC
AMOUNT OF LEAK 7.5 cc/min 15 cc/min 26 cc/min
TEST PRESSURE 4 Kgf/cm² 3 Kgf/cm² 0.5 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min

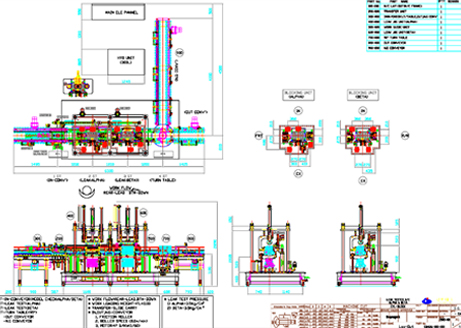

CYL BLOCK LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST MODEL CHECK
3 - ST ALPHA LEAK TEST
4 - ST BETA LEAK TEST
5 - ST TURN TABLE
6 - ST NG CONVEYOR
7- ST UNLOAD’G
SPECIFICATION
Type Transfer Type
Work Transfer Pallet Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 50 sec/ea
LEAK TEST SPEC ALPHA BETA
TEST PRESSURE 3.5 Kgf/cm² 3.5 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD
Air 27,000 L/min

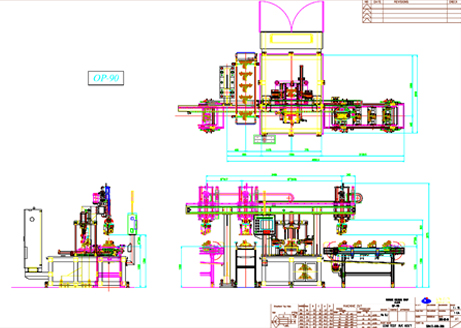

TURBINE HSG 180HP LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST MODEL CHECK
3 - ST LEAK TEST
4 - ST NG CONVEYOR
5 - ST UNLOAD’G
SPECIFICATION
Type Full Auto Type
Work Transfer Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 83 sec/ea
LEAK TEST SPEC TEST PRESSURE 10 mL/min
MEASURING UNIT COSMO or Maker specification
Compensation of Material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
Water Dirty Tank. 2500L Clean Tank. 2000L
Air 27,000 L/min

TURBINE HSG 180HP FLOW TESTER

STN NAME
1 - ST LOAD’G
2 - ST V/V SEAT LEAK TEST
3 - ST V/V SEAT LEAK TEST
4 - ST QR CODE MARK’G & READ’G
5 - ST NG CONVEYOR
6 -ST UNLOADING
SPECIFICATION
Type Full Auto Type
Work Transfer Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 83 sec/ea
LEAK TEST SPEC V/V SEAT 7 L/min
V/V STEM 29L/min
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
Water Dirty Tank. 2500L Clean Tank. 2000L
Air 27,000 L/min

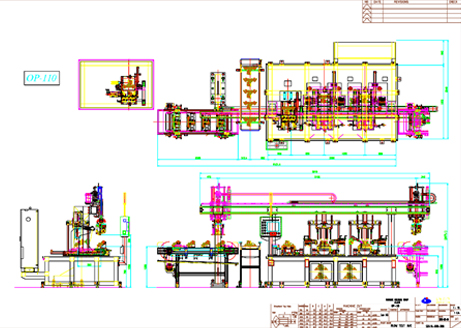

D16DTF LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST IN-EX PORT LEAK TESK
3 - ST CAM ROOM
4 - ST N.G CONVEYOR
5 - ST UNLOADING
SPECIFICATION
Type Full Auto Type
Work Transfer Roller Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 160 sec/ea
LEAK TEST SPEC IN-EX PORT CAM ROOM
PRESS 10 SEC 10 SEC
EQUALIZING 4 SEC 4 SEC
DETECTION 3 SEC 5 SEC
AMOUNT OF LEAK -10 ~ 5 cc/min -10 ~ 5 cc/min
TEST PRESSURE 0.5 Kgf/cm² 0.5 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min

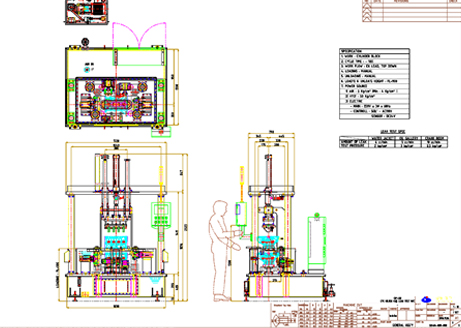

CYL BLOCK HANDY LEAK TESTER

STN NAME
SPECIFICATION
Type -
Work Transfer -
Load’g & Unload’g -
Cycle Time -sec/ea
LEAK TEST SPEC WATER JACKET OIL GALLERY CRANK ROOM
AMOUNT OF LEAK 6 cc/min 5 cc/min 10 cc/min
TEST PRESSURE 2 Kgf/cm² 3 Kgf/cm² 0.5 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature -
Safety -
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min

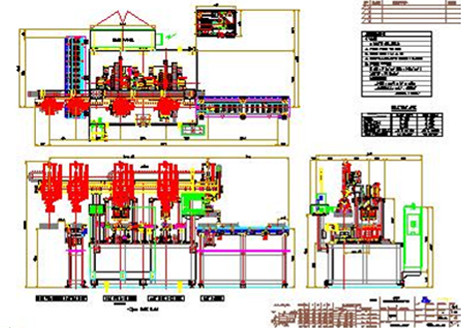

GW LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST LASER MARK’G
3 - ST V8 LEAK TESK
4 - ST V6 LEAK TEST
5 - ST NG CONVEYOR
6 -ST NG CONVEYOR
SPECIFICATION
Type Full Auto Type
Work Transfer Belt Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 180 sec/ea
LEAK TEST SPEC CAM ROOM OIL LINE W/JACKET PORT
PRESS 20 SEC 10 SEC 15 SEC 15 SEC
ISOBAR 8 SEC 3 SEC 5 SEC 5 SEC
EQUALIZING 8 SEC 3 SEC 5 SEC 5 SEC
DETECTION 5 SEC 3 SEC 3 SEC 3 SEC
AMOUNT OF LEAK 12 cc/min 12 cc/min 12 cc/min 12 cc/min
TEST PRESSURE 1.38Kgf/cm² 1.38Kgf/cm² 1.38Kgf/cm² 1.38Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min

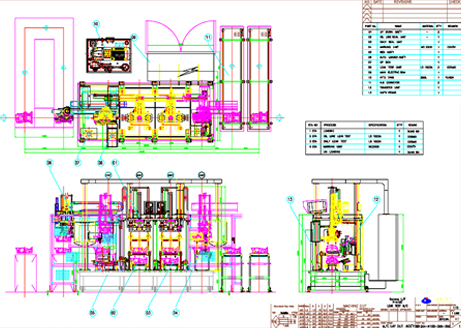

GAMMA LADDER FRAME LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST OIL LINE LEAK TEST
3 - ST ONLY LEAK TEST
4 - ST MARK’G
5 - ST UNLOAD’G
SPECIFICATION
Type Transfer
Work Transfer Roller Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 40 sec/ea
LEAK TEST SPEC OIL LINE
PRESS 9 SEC
EQUALIZING 8 SEC
DETECTION 8 SEC
AMOUNT OF LEAK 5 cc/min
TEST PRESSURE 5 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min

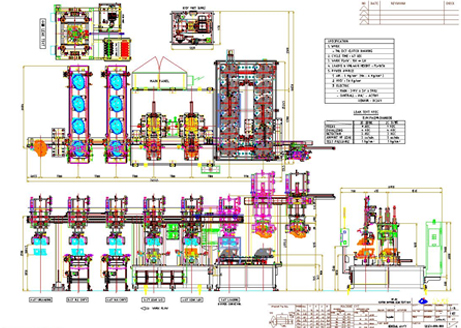

DCT CLUTCH HOUSING LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST BUFFER CONVEYOR
3 - ST LEAK TEST (2D)
4 - ST LEAK TEST (2C)
5 - ST NG CONVEYOR
6- ST UNLOAD’G
SPECIFICATION
Type Transfer
Work Transfer Slide + Belt Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 47 sec/ea
LEAK TEST SPEC 2D 2C
PRESS 9 SEC 9 SEC
EQUALIZING 4 SEC 4 SEC
DETECTION 3 SEC 3 SEC
AMOUNT OF LEAK 3 cc/min 3 cc/min
TEST PRESSURE 1 Kgf/cm² 1 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min

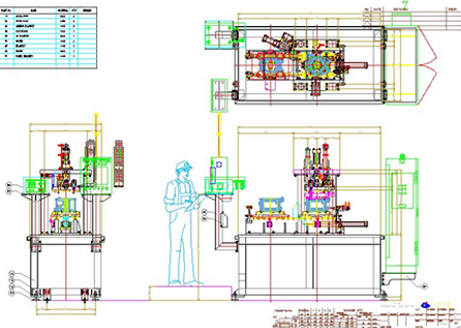

DU MOTOR HSG LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST LEAK TEST
3 - ST NG EJECTOR
4 - ST UNLOAD’G
SPECIFICATION
Type Transfer, Servo Motor
Work Transfer Shuttle + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 200 sec/ea
LEAK TEST SPEC WATER All of parts
TEST TIME 10 sec 10 sec
TEST PRESSURE 2 Kgf/cm² 2 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min

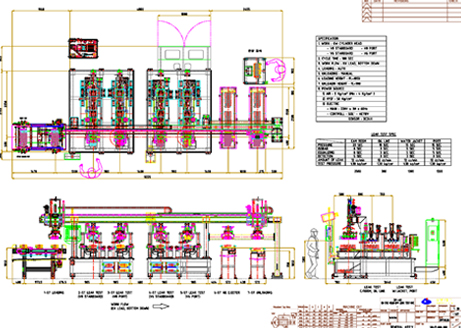

KAPPA CYL HEAD LEAK TESTER

STN NAME
1 - ST LOAD’G
2 - ST BUFFER CONVEYOR
3 - ST LEAK TEST (MPI CAM-ROOM)
4 - ST LEAK TEST (MPI WATER IN-EX)
5 - ST LEAK TEST (T-GDI CAM-ROOM)
6 - ST LEAK TEST (T-GDI WATER IN-EX)
7 - ST MARKING
8 - ST NG CONVEYOR
9 - ST UNLOAD’G
SPECIFICATION
Type Transfer
Work Transfer Pallet Conveyor + Auto Loader
Load’g & Unload’g Auto Loader
Cycle Time 55sec/ea
LEAK TEST SPEC IN-EX PORT CAM ROOM WATER
PRESS 17 SEC 14 SEC 17 SEC
EQUALIZING 3 SEC 3 SEC 3 SEC
DETECTION 3 SEC 3 SEC 3 SEC
AMOUNT OF LEAK 10 cc/min 10 cc/min 5 cc/min
TEST PRESSURE 0.5 Kgf/cm² 0.5 Kgf/cm² 3 Kgf/cm²
MEASURING UNIT COSMO or Maker specification
Compensation of material temperature Installed Auto material equipment (stored parts of 30 minutes productions)
Safety Drop prevention equipment of leak head unit at the manual operation
Utility Voltage 220/380/415/440 3P 60Hz
HYD 50 Kgf/cm²
Air 27,000 L/min
