PRODUCT
AUTO MEASURING M/C

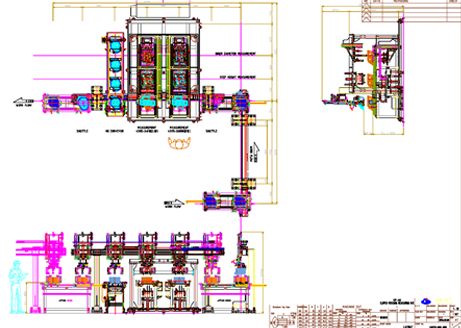

DCT CLUCH HOUSING MEASURING M/C
TRANSFER TYPE : CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | SHUTTLE |
| 3 - ST | MEASURING |
| 4 - ST | MEASURING |
| 5 - ST | NG CONVEYOR |
| 6 -ST | UNLOAD’G |
| Type | Transfer Type | ||
|---|---|---|---|
| Work Transfer | Conveyor + Auto Loader +Transfer | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 47 sec/ea | ||
| Bed | Welded structure | ||
| Measuring unit | Domestic or Maker specification | ||
| SPC | Measured data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||

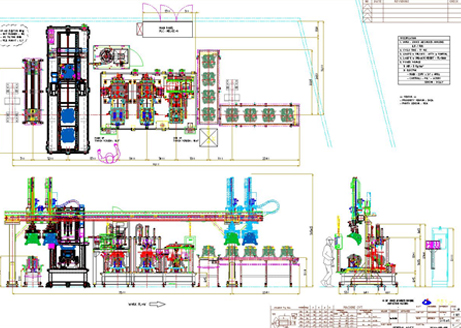

SPLITTING & ASS’Y T/M
TRANSFER +ROBOT
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | NUT RUNNER |
| 3 - ST | BUSH & PIN PRESSER |
| 4 - ST | INSPECTION & MARK’G |
| 5 - ST | UNLOAD’G |
| Type | Transfer (Lift & Carry) | ||
|---|---|---|---|
| Work Transfer | Lift & Carry , Auto Loader | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 40 sec/ea | ||
| Bed | Welded structure | ||
| Measuring unit | Domestic or Maker specification | ||
| SPC | Measured data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||

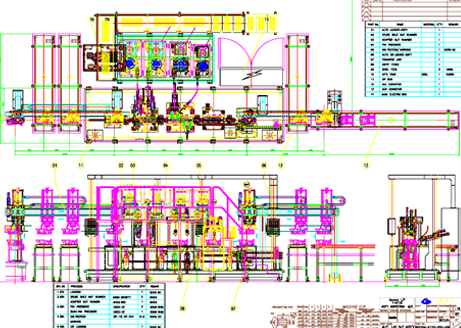

SHOCK ABSORBER HSG INSPECTION M/C
CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | NUT RINNER(INSERT NUT) |
| 3 - ST | RH INSPECTION |
| 4 - ST | LH INSPECTION |
| 5 - ST | MARKING |
| 6 - ST | NG CONVEYOR |
| 7 - ST | UNLOADING |
| Type | Transfer Type (Slide Carry) | ||
|---|---|---|---|
| Work Transfer | Transfer (Slide Carry) + Belt Conveyor | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 77 sec/ea | ||
| Bed | Welded structure | ||
| Measuring unit | Domestic or Maker specification | ||
| SPC | Measured data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||
